Heavy-Duty Manhole Slabs for Safe Access & Structural Integrity

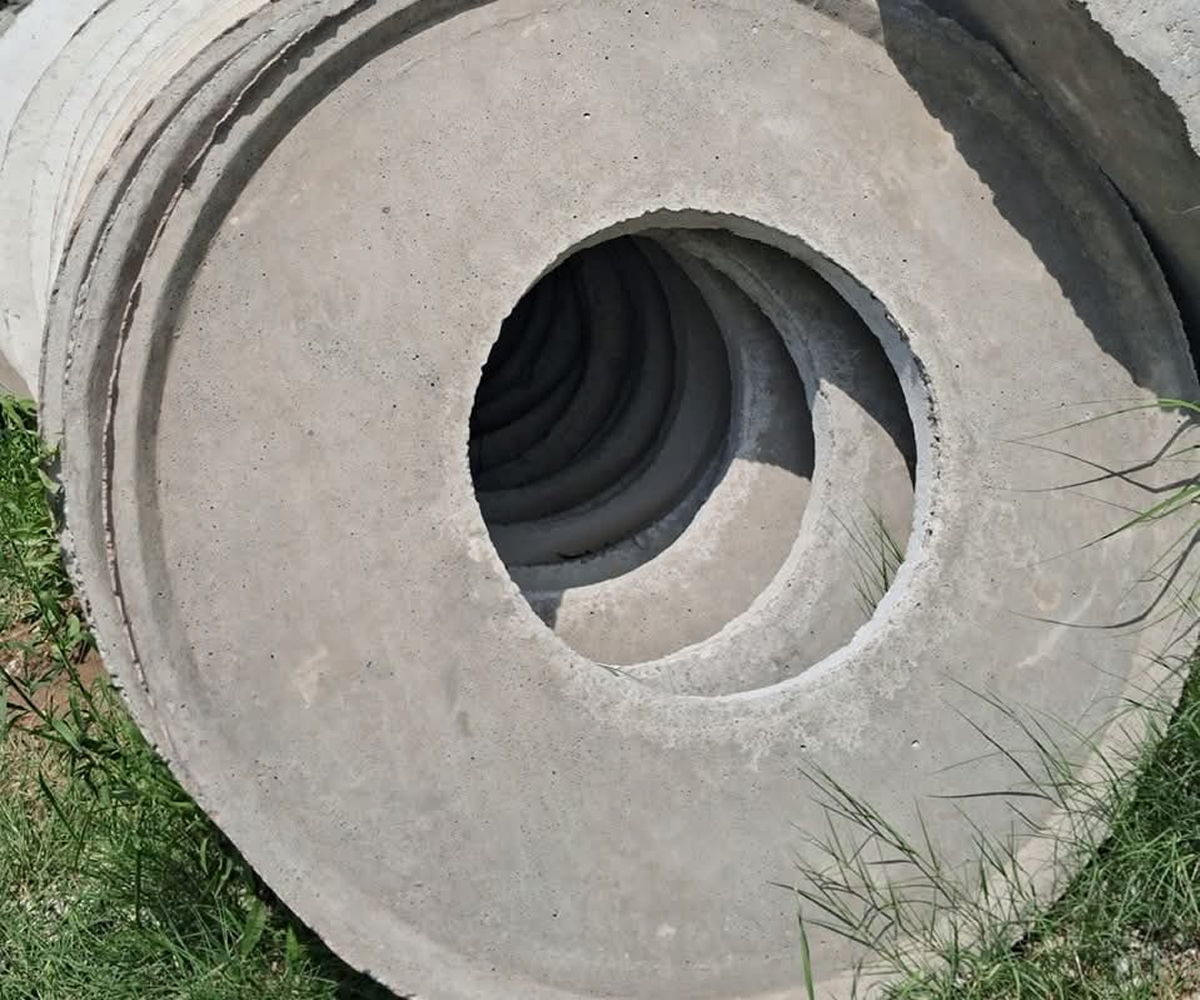

Manhole slabs are precast concrete units placed on top of manhole rings or chambers to form the final closure of an underground inspection point. They provide a solid, load‑bearing surface that transfers traffic and soil loads away from the access opening while maintaining a secure, watertight seal.
How They Work:
The slab sits directly on the top ring of the manhole structure. A factory‑formed opening in the centre accommodates a manhole cover and frame, allowing access for inspection and maintenance. The slab’s reinforced concrete construction distributes loads evenly to the surrounding masonry or concrete rings.
Primary Uses
- Capping inspection chambers in residential, commercial, and municipal sewer networks.
- Providing access points for drainage inspection and cleaning.
- Serving as access covers for water valves, electrical vaults, and telecom pits.
- Installed in carriageways where manhole covers must support high‑speed traffic.
Why Choose Majorcon Precast Manhole Slabs?
- At Majorcon Precast, our manhole slabs are engineered for strength, safety, and longevity—providing a reliable closure for critical underground infrastructure. Build with confidence. Build with Majorcon Precast.
Frequently Asked Questions
Manhole slabs are critical to the safety and longevity of underground systems. Here are answers to the technical questions we receive from engineers, contractors, and municipal authorities.
Load rating depends on the installation location:
| Load Class | Application | Typical Thickness |
|---|---|---|
| Light duty | Footpaths, gardens, pedestrian areas | 100mm |
| Medium duty | Residential driveways, car parks | 125mm |
| Heavy duty | Roads, bus lanes, industrial yards | 150mm – 175mm |
| Extra heavy duty | Highways, ports, airports | 200mm+ |
Our technical team can help you select the correct rating based on your site conditions and traffic expectations.
Yes. We can supply matching manhole covers and frames to fit the access opening. Covers are available in:
Ductile iron for high‑strength applications
Composite for lighter, non‑traffic areas
Recessed to accept paving or gravel for a finished appearance
We recommend ordering slab, frame, and cover together to ensure a perfect fit and proper load transfer.
Installation follows these steps:
Prepare the top ring – Ensure the top manhole ring is level, clean, and correctly aligned.
Apply mortar bed – Spread a full bed of strong mortar (1:3 cement:sand) on the top ring.
Position the slab – Lower the slab carefully onto the mortar, aligning the access opening with the chamber below.
Level and bed – Tap the slab to level and ensure full contact with mortar. The slab should overhang the ring evenly on all sides.
Set the frame – Bed the manhole cover frame on fresh mortar, ensuring it sits flush with the finished surface.
Point joints – Fill any gaps between slab and frame with weatherproof mortar.
Allow mortar to cure fully before applying traffic.
Yes. The slab is designed to cap the uppermost ring, regardless of total chamber depth. The number of rings below determines the overall depth, while the slab provides the top closure. For very deep chambers, multiple rings are stacked; the slab remains the final component.
Yes. While round slabs are standard for circular manholes, we manufacture rectangular and square slabs for large inspection chambers, valve pits, electrical vaults, and custom utility structures. Provide your chamber dimensions and load requirements, and we’ll produce a slab to fit.
