Wall Copings for Superior Wall Protection

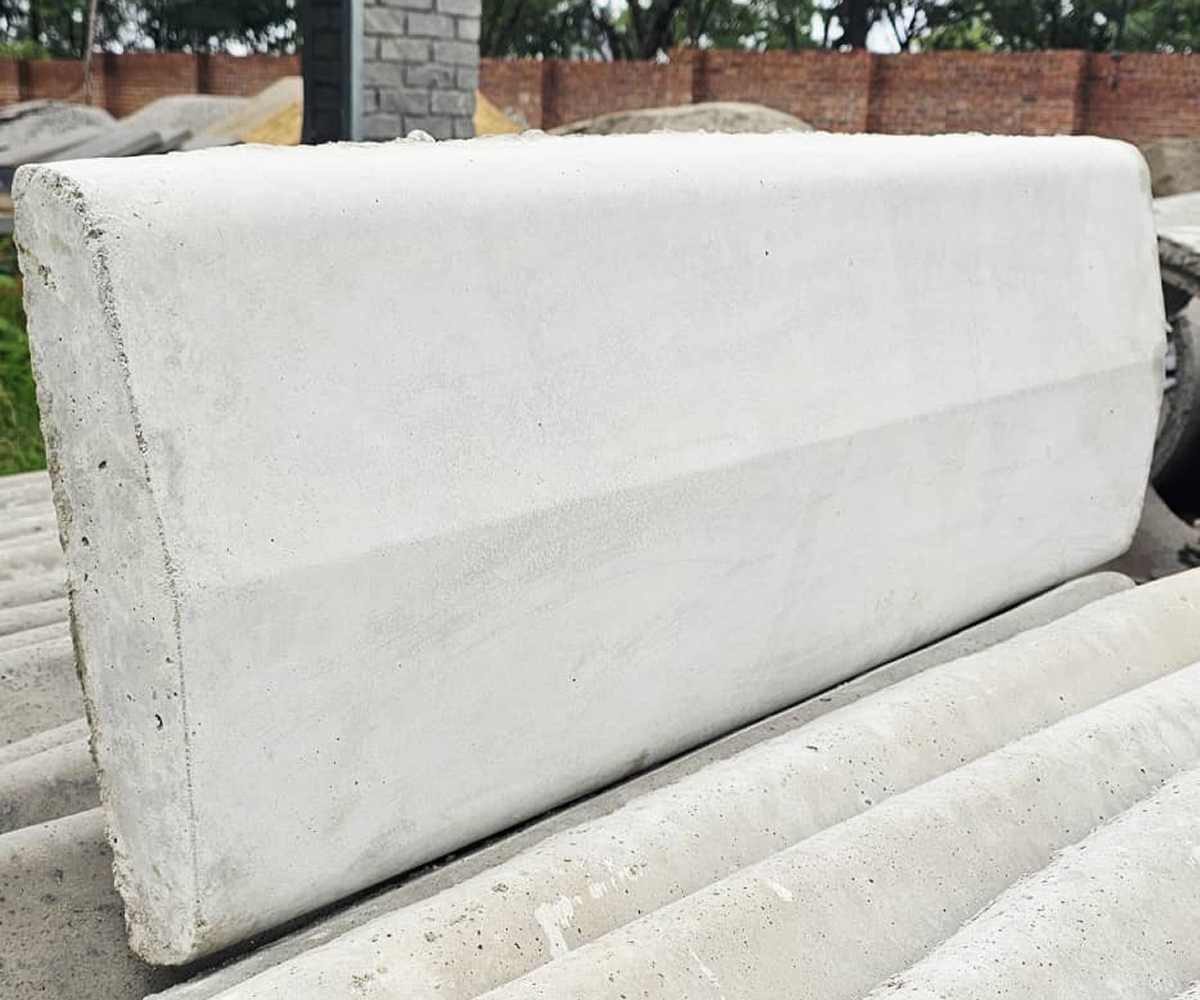

Wall copings are precast concrete caps installed on top of walls to protect them from weather damage. They form the critical finishing element that shields the wall core from rain, sun, and temperature extremes.

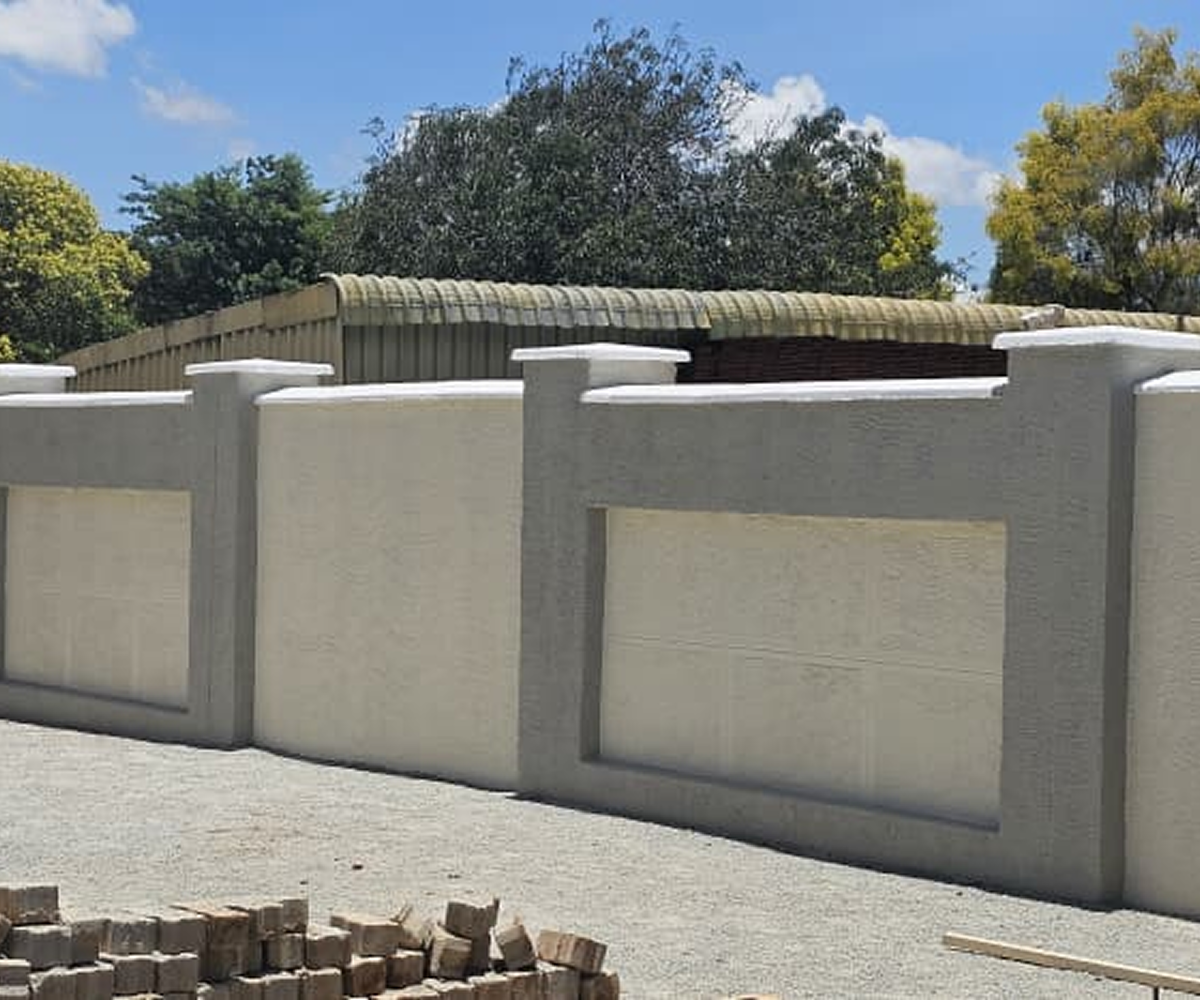

The coping sits atop the wall, typically with a slight overhang on each side. An integrated drip groove on the underside prevents water from running back onto the wall face. The sloped top surface encourages water to run off rather than pond.
At Majorcon Precast, our wall copings are engineered for effective weather protection and lasting durability, giving walls a clean, finished appearance while preventing long-term damage. Build with confidence. Build with Majorcon Precast.
Primary Uses
- Protecting garden, perimeter, and security walls.
- Preventing water ingress into the retained soil side.
- Finishing roof edges and balcony balustrades.
- Adding decorative finish to landscape walls.
Wall Coping
Specification Sheet
Specifications
| Property | Specification |
|---|---|
| Material | Reinforced precast concrete, grade C40/50 (or as specified) |
| Concrete Strength | ≥ 40 MPa at 28 days |
| Reinforcement | High‑tensile steel bars to BS 4449 / ASTM A615, epoxy coated optional |
| Standards | BS EN 13369, SANS 1215, or equivalent local standards |
| Finish | Natural grey concrete; smooth or exposed aggregate available |
| Tolerances | ±5 mm on all dimensions |
Product Variants
Available in standard lengths and widths. Thickness typically 50–80 mm depending on profile.
| Product Code | Length (mm) | Width (mm) | Thickness (mm) | Approx. Weight (kg) | Typical Application |
|---|---|---|---|---|---|
| WC‑600‑600 | 600 | 600 | 60 | 55 | Pillar tops, column caps, square feature walls |
| WC‑1000‑230 | 1000 | 230 | 50 | 28 | Linear wall coping, parapet walls, garden walls |
| WC‑1000‑230‑HD | 1000 | 230 | 70 | 39 | Heavy‑duty wall coping (higher load / longer span) |
Ordering Notes
- Dimensions: Specify length, width, thickness, and any required overhang.
- Profile: Indicate flat, sloped, or custom shape.
- Finish: Smooth, exposed aggregate, or coloured concrete.
- Reinforcement: Specify if heavy‑duty reinforcement is needed.
- Corner Units: Provide corner details (internal/external mitres or L‑shapes).
- Testing: Compressive strength and dimensional reports available.
Why Choose Our Wall Copings
- Creates a protective cap that prevents rainwater from penetrating the wall core, reducing freeze-thaw damage and deterioration.
- Sloped surfaces and drip grooves direct water away from the wall face, preventing unsightly staining and erosion.
- Protects the vulnerable top course of brickwork or blockwork from weathering and mechanical damage.
- Provides a professional, completed look to boundary walls, retaining walls, and parapets.
- Once installed, concrete copings require no painting, sealing, or regular upkeep.
Frequently Asked Questions
Wall copings are essential for long-term wall durability. Here are answers to the questions we receive from architects, builders, and homeowners.
The drip groove (or throating) is a critical functional feature:
Water interruption: Breaks the surface tension of water running along the underside
Water shedding: Causes water to drip off rather than travel back to the wall face
Stain prevention: Prevents unsightly water stains on the wall surface
Freeze protection: Reduces moisture on wall face that could freeze and cause damage
All our wall copings include an integral drip groove along both sides.
Our Sales Team can advise on the most suitable profile for your wall type and location.
| Profile | Description | Best For |
|---|---|---|
| Flat | Level top surface | Modern designs, walkable walls |
| Sloped/Single Weathered | Slopes to one side | Walls where one side requires more protection |
| Saddleback/Double Weathered | Slopes to both sides | Free-standing walls requiring equal protection both sides |
| Roll Top | Curved profile | Decorative garden and boundary walls |
| Special Profiles | Custom designs | Architectural features, heritage projects |
Coping width should exceed wall width for proper protection:
Standard rule: Coping width = wall width + 50mm to 75mm total overhang
Overhang: 25mm to 40mm on each side is typical
Measurement: Measure your wall width (including render or cladding)
Selection: Choose coping width closest to wall width + total overhang
Example: A 225mm wide blockwork wall would typically use 300mm wide copings (225mm + 40mm + 35mm overhang).
Yes, several options available:
Standard copings: For gentle curves, standard lengths can follow curve with slightly angled joints
Radius copings: Manufactured to specific radius for consistent curved appearance
Short lengths: Smaller units (300-600mm) for tighter curves
Special molds: Custom profiles for unique architectural curves
Provide your wall radius to our Sales Team, and we’ll advise on the best solution.
Samples available upon request. Custom colors and finishes can be developed for large projects.
| Finish | Appearance | Best For |
|---|---|---|
| Smooth Grey | Standard concrete finish | General purpose, economical |
| Smooth Buff/Cream | Colored concrete | Matching house renders, architectural |
| Exposed Aggregate | Embedded stone visible | Decorative gardens, feature walls |
| Textured | Brushed or patterned finish | Anti-slip requirements, rustic styles |
| Sandblasted | Revealed fine aggregate | Modern architectural projects |
